點擊數：2257HR2.19型雙管軟管卷筒

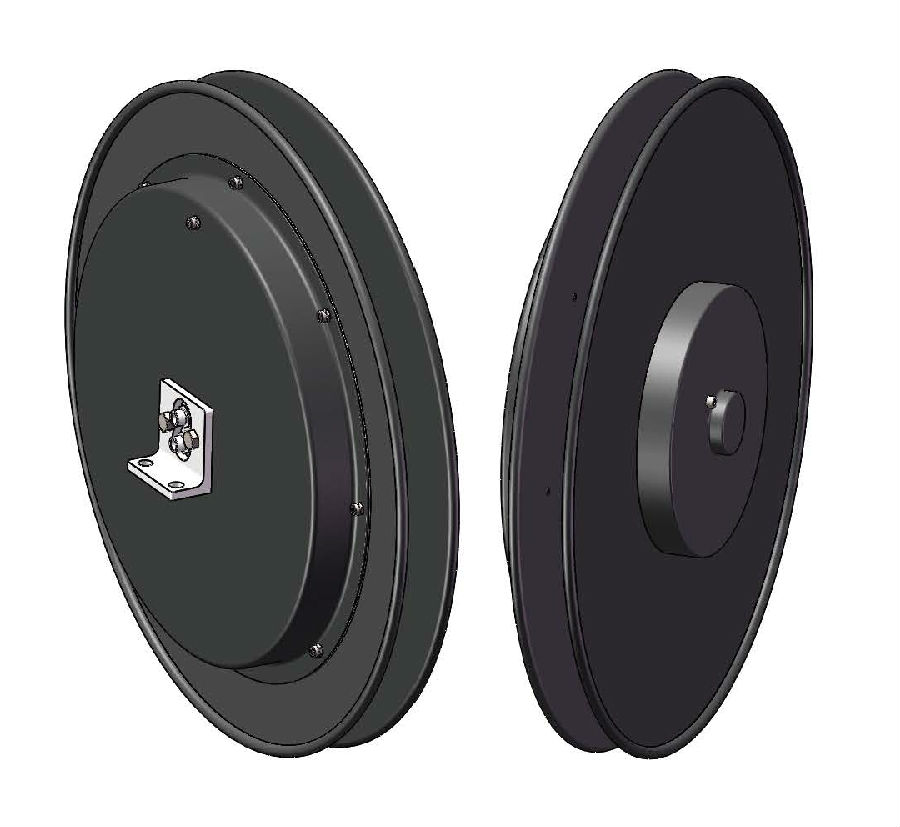

HR2.19 型雙管軟管卷筒
HR2.19雙管軟管卷筒 最大壓力 | Max. work pressure ：350bar |  |
訂貨實例 | Or der Example
| HR2 | R | 470 | 19 | 12 | B3 |
| 雙管型卷筒 | R：右旋 L：左旋 | 盤子直徑 | 設計號 | 軟管內徑 | 軟管類型 |
可選軟管 | Available hose
B1：熱塑性鋼絲編織加強層軟管 | Thermoplastic with 1 steel braid reinforcement
B2、B3：合成橡膠2層鋼絲編織加強層軟管 | Rubber with 2 steel braid reinforcement
| 軟管內徑Φ Hose Inside diameter | 型號 Type | 最大壓力 Max.pressure (bar) | 軟管外徑Φ Outside Hose (mm) | 最小彎曲半徑 Min.bending (mm) | 重量 Weight kg/m | |
| Inch | mm | |||||
| 1/2" | 12.5 | B1 | 175 | 18.3 | 85 | 0.6 |
| B2 | 310 | 20 | 130 | 1.04 | ||
| B3 | 350 | 20.2 | 150 | 1.04 | ||
| 5/8" | 16 | B3 | 250 | 25 | 160 | 1.32 |
| 3/4" | 19 | B3 | 225 | 27.7 | 195 | 1.72 |

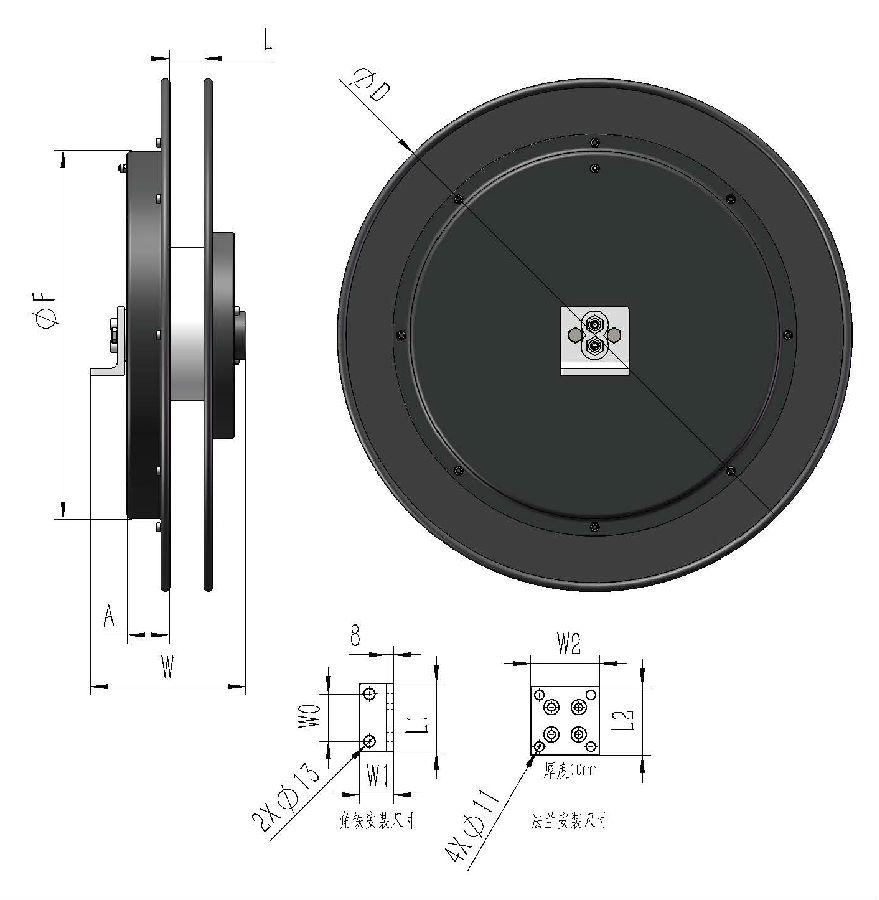

| 型號 Type | A | B | D | E | F | 軟管內徑 Inside Hose | 管型|Hose type-B1 | 管型|Hose type-B2-B3 | ||
| mm | 總長(m) total length | 工作行程(m) Usable Length | 總長(m) total length | 工作行程(m) Usable Length | ||||||
| HR2R(L).420.19.12.XX | 212 | 108 | 420 | 47 | 322 | 1/2" | 3.5 | 3 | 3.5 | 3 |
| HR2R(L).420.19.16.XX | 5/8" | 2.6 | 2.1 | |||||||
| HR2R(L).420.19.19.XX | 3/4" | 2.6 | 2.1 | |||||||
| HR2R(L).470.19.12.XX | 212 | 108 | 478 | 47 | 322 | 1/2" | 5 | 4.5 | 5 | 4.5 |
| HR2R(L).470.19.16.XX | 5/8" | 4 | 3.5 | |||||||
| HR2R(L).470.19.19.XX | 3/4" | 4 | 3.5 | |||||||
| HR2R(L).520.19.12.XX | 212 | 108 | 520 | 47 | 422 | 1/2" | 8 | 7.5 | 6.8 | 6.3 |
| HR2R(L).520.19.16.XX | 5/8" | 5.4 | 4.9 | |||||||
| HR2R(L).520.19.19.XX | 3/4" | 5.4 | 4.9 | |||||||
| HR2R(L).570.19.12.XX | 222 | 108 | 570 | 47 | 422 | 1/2" | 10 | 9.5 | 8.5 | 8 |
| HR2R(L).570.19.16.XX | 5/8" | 7 | 6.5 | |||||||
| HR2R(L).570.19.19.XX | 3/4" | 7 | 6.5 | |||||||
| HR2R(L).600.19.12.XX | 232 | 128 | 620 | 57 | 422 | 1/2" | 12 | 11.5 | 12 | 11.5 |
| HR2R(L).600.19.16.XX | 5/8" | 8.8 | 8.3 | |||||||
| HR2R(L).600.19.19.XX | 3/4" | 7.5 | 7 | |||||||
| HR2R(L).650.19.12.XX | 242 | 138 | 650 | 67 | 1/2" | 13 | 12.5 | |||
| HR2R(L).650.19.16.XX | 5/8" | 10 | 9.5 | |||||||
| HR2R(L).650.19.19.XX | 3/4" | 9 | 8.5 | |||||||
| HR2R(L).700.19.12.XX | 242 | 138 | 720 | 67 | 532 | 1/2" | 18 | 17.5 | 16.4 | 15.9 |
| HR2R(L).700.19.16.XX | 5/8" | 13 | 12.5 | |||||||
| HR2R(L).700.19.19.XX | 3/4" | 11.5 | 11 | |||||||
| HR2R(L).800.19.12.XX | 242 | 138 | 820 | 67 | 532 | 1/2" | 25 | 24 | 21 | 20 |
| HR2R(L).800.19.16.XX | 5/8" | 17.5 | 16.5 | |||||||
| HR2R(L).800.19.19.XX | 3/4" | 16 | 15 | |||||||
| HR2R(L).900.19.12.XX | 242 | 138 | 920 | 67 | 532 | 1/2" | 30 | 29 | 29 | 28 |
| HR2R(L).900.19.16.XX | 5/8" | 23 | 22 | |||||||
